高速螺旋门
Commercial Roll-Up Door for Modern Industrial Efficiency
适用于现代工业效率的商用卷帘门
The Megodoor High-Speed Spiral Door is a high-performance door system engineered for modern industrial environments. Combining advanced technology with innovative design, it meets the demands of high-frequency, high-efficiency, and high-security operations.
Megodoor 高速螺旋门是一款专为现代工业环境设计的高性能门系统。融合先进技术与创新设计，满足高频、高效、高安全性的运营需求。
Equipped with the special servo control system, the door achieves opening speeds of 1.5–2.0 meters per second, significantly enhancing operational efficiency. Its double-layer curtain is constructed from 2.0mm extra-thick aluminum alloy profiles, delivering exceptional impact resistance and long-term durability.
采用专用伺服控制系统，开启速度可达1.5–2.0米/秒，显著提升工作效率。其双层门帘由0.7mm超厚铝合金型材制成，具备卓越的抗冲击性与耐用性。
With four key advantages—high speed, safety, durability, and intelligent control—Megodoor spiral doors are ideal for applications in airport cargo handling, automated production lines, warehouse logistics entrances/exits, and more, helping enterprises improve efficiency and safety standards.
凭借高速、安全、耐用、智能控制四大优势，Megodoor 螺旋门广泛应用于机场货运、自动化生产线、仓储物流出入口等场景，助力企业提升运营效率与安全水平。
Our Innovations: 4 Advantages of Megodoor Spiral Fast Door!
我们的创新：Megodoor 螺旋快速门四大优势！
✅ High Speed & Efficiency
The Megodoor spiral door uses the advanced German FROG PUPIL servo control system, achieving opening speeds of 1.5–2.0 m/s. This rapid operation significantly improves workflow efficiency and reduces waiting time—perfect for high-traffic areas.
✅ 高速与高效
Megodoor 螺旋门采用先进的德国 FROG PUPIL 伺服控制系统，开启速度达1.5–2.0米/秒。快速启闭显著提升工作效率，减少等待时间，非常适合高频出入场所。
✅ Sturdy & Durable
Featuring a 2.0mm extra-thick curtain and aluminum alloy profiles, the door offers strong impact resistance and long-term durability. The double curtain structure and reinforced rib design ensure a long service life in high-frequency environments, reducing maintenance and replacement costs.
✅ 坚固耐用
门体采用2.0mm超厚门帘和铝合金型材，具备强大抗冲击性与卓越耐用性。双层门帘结构与加强筋设计确保在高频使用环境中长久服役，降低维护与更换成本。
✅ Safe & Reliable
Equipped with Megodoor patented extended safety light curtains and airbag bottom sensors, the door effectively prevents accidents and protects personnel and equipment. Multiple safety features ensure reliable operation, meeting strict industrial safety standards.
✅ 安全可靠
配备Megodoor 专利延伸式安全光幕和底部气囊传感器，有效预防事故，保障人员与设备安全。多重安全防护措施，确保运行更安心，符合现代工业严苛安全要求。
✅ Intelligent Control
Powered by a servo frequency conversion control system, the door supports multiple opening methods: radar, geomagnetic, infrared, Bluetooth, remote control, and access control integration. Its multi-functional expansion port enables seamless integration with automation systems and remote signal control, enhancing flexibility and intelligence.
✅ 智能控制
采用伺服变频控制系统，支持雷达、地磁、红外、蓝牙、遥控、门禁联动等多种开启方式。多功能扩展接口可与其他设备集成，支持远程信号控制，提升系统灵活性与智能化水平。

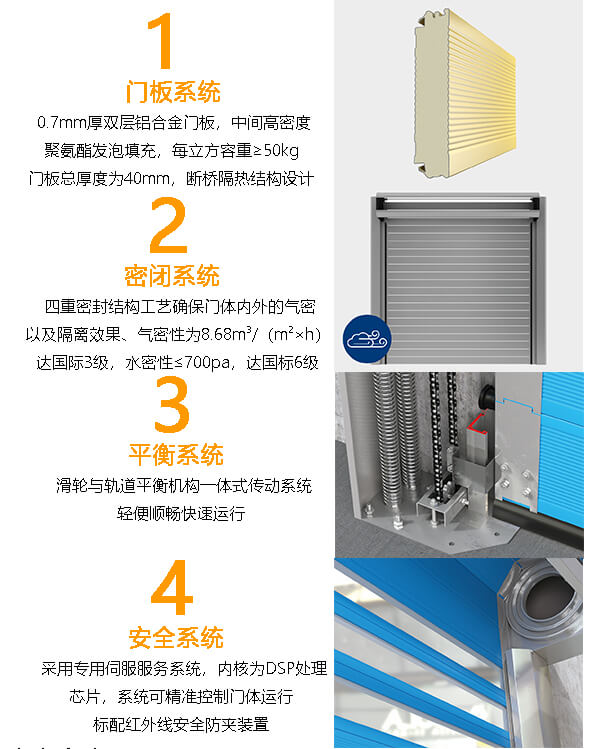

Details Display: Megodoor Turbine Hard Rapid Doors
产品细节展示：Megodoor 涡轮硬快门
| Component | Description |
|---|---|
| Door Panel | 0.7mm thick double-layer aluminum alloy panel with thermal insulation and soundproofing properties |
| Sealing System | EPDM rubber seals on top, sides, and bottom; additional rubber strips at panel joints to prevent heat/cold transfer |
| Balance System | Integrated pulley and rail balancing mechanism for smooth, fast, and quiet operation |
| Security System | Standard infrared anti-pinch device; servo motor enables precise control of door movement |
| 部件 | 说明 |
|---|---|
| 门板 | 0.7mm厚双层铝合金门板，具备保温与隔音性能 |
| 密封系统 | 顶部、两侧及底部均配备EPDM密封条；门板接缝处加装密封胶条，防止冷热传递 |
| 平衡系统 | 滑轮与导轨一体化平衡机构，运行轻便、平稳、快速 |
| 安全系统 | 标配红外防夹装置；伺服电机实现门体运行精准控制 |

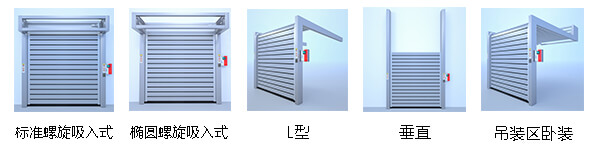

Various Lifting Methods for Hard Fast Doors
硬快门多种提升方式
Choose the optimal lifting method based on your workshop space and structural constraints.
根据车间空间与结构限制，选择最适合的提升方式。
| Lifting Type | Application |
|---|---|
| Standard Circular Spiral | Suitable for most standard applications |
| Elliptic Spiral | Ideal for spaces with limited headroom |
| Lay-Flat Construction | Designed for lifting ports or ceiling-recessed installations |
| Vertical Structure | Best for areas with limited side clearance |
| S-Turn Structure | For special architectural or spatial requirements |
| L-Turn Structure | Optimized for compact or irregular spaces |
| 提升方式 | 适用场景 |
|---|---|
| 标准圆形螺旋 | 适用于大多数常规场景 |
| 椭圆螺旋结构 | 适合头部空间不足的场所 |
| 平躺式结构 | 适用于提升口或吊顶嵌入式安装 |
| 垂直提升结构 | 适合侧边空间不足的场所 |
| S型结构 | 适用于特殊建筑或空间需求 |
| L型结构 | 适合紧凑或不规则空间 |

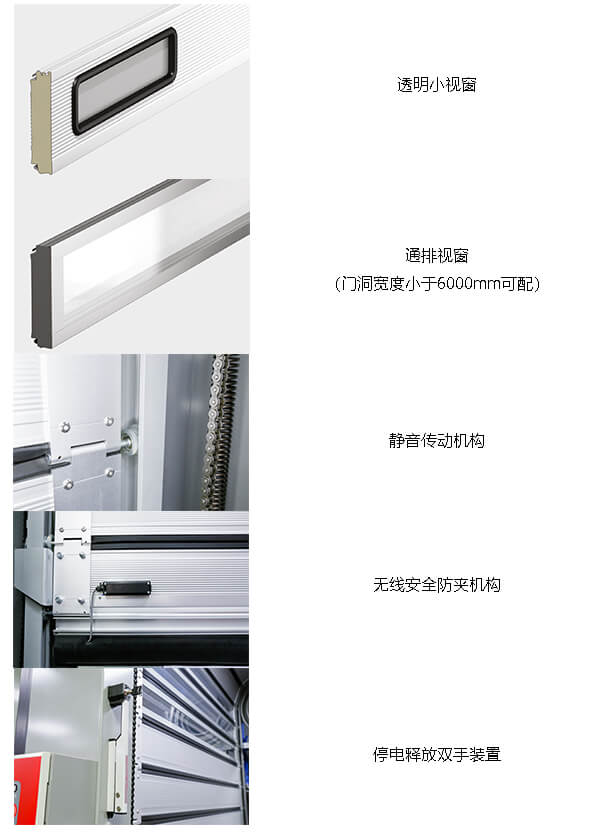

More Custom Styles for Aluminum High-Speed Doors
铝合金高速门更多定制款式
Enhance functionality and adaptability with optional features:
通过可选功能提升实用性与适应性：
- Transparent Windows
Clear panels for visibility between zones - Through-Row Windows
Full-width transparent strips (for openings <6000mm) to enhance natural lighting - Manual Release Device
Allows manual operation during power outages - Sectional Overhead Door with Small Door (Door-in-Door)
Equipped with interlock: large door cannot open unless small door is fully closed - Custom Colors & Finishes
Match your facility’s aesthetics and branding - 透明视窗
实现区域间可视，便于观察 - 通排视窗
全宽透明条（门宽<6000mm），提升自然采光 - 手动释放装置
断电时可手动开启门体 - 定制颜色与表面处理
匹配厂房外观与品牌形象

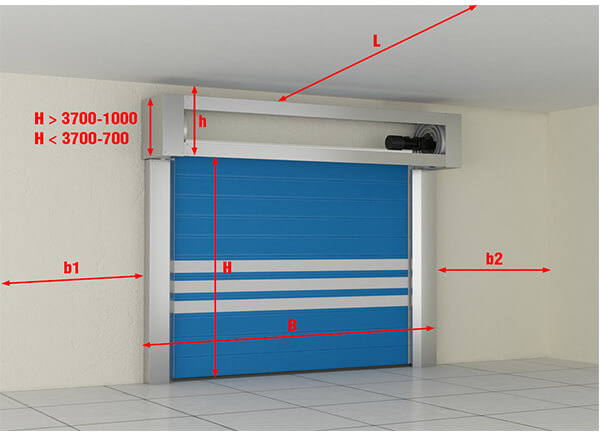

Installation Instructions
安装指南
All measurements are taken indoors. Each dimension must be measured at at least 3 points.
所有测量均在室内进行，每个尺寸需至少测量3个点。
| Parameter | Description | Measurement Rule |
|---|---|---|
| H | Height of opening (floor to top of frame) | Take the maximum value |
| B | Width of opening (left to right edge) | Take the maximum value |
| h | Headroom (top of opening to ceiling) | Reserve ≥900mm, take the minimum value |
| b1 / b2 | Side clearance (to wall obstacles) | Minimum 350mm, take the minimum value |
| L | Room depth (from opening to back wall) | Take the minimum value |
| 参数 | 说明 | 测量规则 |
|---|---|---|
| H | 门洞高度（地面至门框顶部） | 取最大值 |
| B | 门洞宽度（左至右边缘） | 取最大值 |
| h | 头部空间（门洞顶部至天花板） | 预留≥900mm，取最小值 |
| b1 / b2 | 侧边空间（至墙体障碍物） | 最小350mm，取最小值 |
| L | 房间深度（门洞至后墙） | 取最小值 |
📏 Accurate measurements ensure optimal fit and performance.
📏 精确测量确保最佳安装效果与性能。
Project Cases: Global Applications
项目案例：全球应用
🇻🇳 Vietnam – Intelligent Garage Door
A Vietnamese client purchased six hard fast doors for their factory’s intelligent 3D garage system—ensuring fast access and automated integration.
🇻🇳 越南 – 智能车库门
越南客户为其工厂智能立体车库采购六套硬快门，实现快速通行与自动化集成。
🇸🇬 Singapore – Underground Parking Access
A Singapore property management company installed a spiral fast door at an underground garage entrance for secure, efficient vehicle access.
🇸🇬 新加坡 – 地下车库出入口
新加坡物业公司为地下车库出入口安装螺旋快速门，保障车辆安全高效通行。

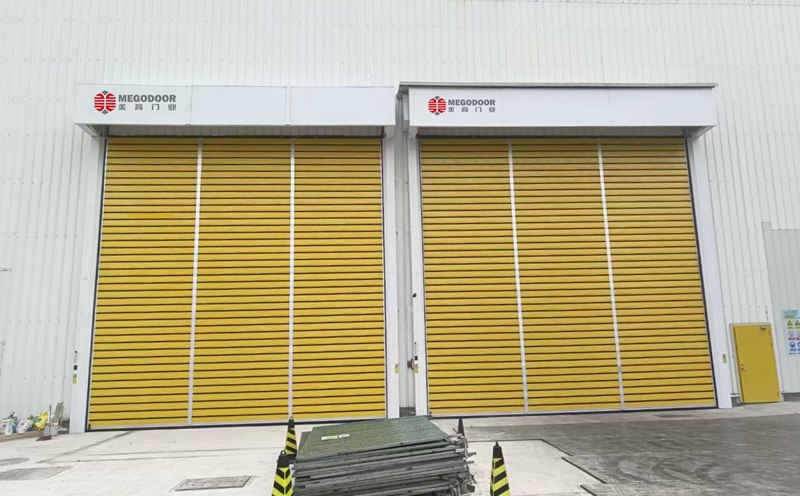

🇨🇳 China – Waste Collection Station
A Chinese client installed large-sized spiral speed doors at a waste recycling station’s factory gate for hygiene, odor control, and rapid vehicle turnover.
🇨🇳 中国 – 垃圾中转站
中国客户在垃圾回收站工厂大门安装大尺寸螺旋快速门，保障卫生、控制异味并提升车辆周转效率。
Our Professional Service Process
我们的专业服务流程
1️⃣ Understand Your Needs
Megodoor has dozens of senior international sales experts and has exported to over 65 countries. Share your requirements—we’ll provide tailored guidance.
1️⃣ 了解您的需求
Megodoor 拥有数十名资深外贸销售，产品出口65+国家。提交需求，我们将提供定制化建议。
2️⃣ Accurate & Professional Quotation
After confirming your needs, we provide technical drawings for approval, then deliver a precise, itemized quote.
2️⃣ 精准专业报价
确认需求后，提供技术图纸供审核，再出具详细清晰的报价单。
3️⃣ Custom Drawings & Renderings
Our team creates 3D mockups and scenario-based visuals for color, accessories, and layout—helping you visualize the final solution.
3️⃣ 定制图纸与效果图
团队提供3D模拟图与场景效果图，涵盖颜色、配件、布局，辅助决策。
4️⃣ Dedicated Production
Manufactured in our 20,000+ sqm automated facility (registered capital: $5.38M USD), each door is built with precision by expert engineers.
4️⃣ 专属生产
在20,000+平方米自动化厂房（注册资本538万美元）内，由专业工程师精密制造。
5️⃣ Packing & Global Shipping
Standard lead time: 18–30 days. Shipped from Shanghai, with options in Ningbo, Qingdao, Shenzhen, etc.
5️⃣ 包装与全球运输
标准交期：18–30天。从上海发货，也可选择宁波、青岛、深圳等港口。
6️⃣ Customer Delivery & Feedback
Trusted by 3,800+ global clients, including 70+ Fortune 500 companies such as IKEA, Thermo Fisher, AkzoNobel, Volkswagen, Bayer, PPG, Wyeth.
6️⃣ 客户交付与反馈
全球3,800+客户信赖，包括70多家世界500强企业，如宜家、赛默飞、阿克苏诺贝尔、大众、拜耳、PPG、惠氏等。
✅ Zero quality complaints reported.
✅ Over 98% customer satisfaction rate.
✅ 零质量投诉记录。
✅ 客户满意度超98%。
Customer Visits & Testimonials
客户来访与评价
🇷🇺 Clients from Russia
Visited our Suzhou factory for inspection. After clear communication, they placed their first order with 100% prepayment, praising our professionalism and pricing.
🇷🇺 俄罗斯客户
专程到访苏州工厂考察。沟通后以100%预付款完成首单，高度认可我们的专业性与报价。
🇨🇴 Clients from Colombia
Despite heavy rain, our team warmly welcomed them with a full factory tour and technical briefing. They later confirmed the order, valuing our reliability and product quality.
🇨🇴 哥伦比亚客户
尽管大雨倾盆，我方团队仍热情接待并全程讲解。客户后续确认订单，认可我们的可靠性与产品质量。
🇦🇺 Client from Australia
Managing a Shanghai project, they urgently needed 10 PVC high-speed doors. Despite lower quotes elsewhere, they chose Megodoor for performance, safety, and after-sales support.
