拉链式高速门
Smart. Sealed. Self-Repairing. Engineered for Clean & Efficient Environments
智能 · 密封 · 自修复——专为洁净高效环境而生
🚪 Product Overview | 产品概述
The Megodoor Zipper High Speed Door features a patented zipper rail system and fully integrated sealed structure, delivering superior insulation, energy efficiency, and contamination control. Designed for high-traffic industrial and cleanroom environments, this door maintains stable indoor temperature and air quality, making it ideal for food processing, pharmaceuticals, cold storage, and logistics centers.
美高门业拉链式高速门采用专利拉链导轨系统与一体化密封结构，实现卓越保温、节能与防污染性能。专为高频通行的工业及洁净环境设计，有效维持室内温湿度与空气质量，广泛适用于食品加工、制药、冷库及物流中心。

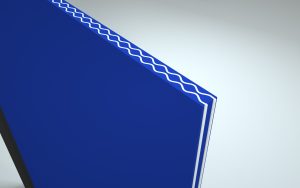

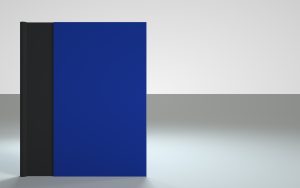

With a maximum speed of up to 2.5 m/s, a self-repairing curtain mechanism, and multi-layer composite PVC curtain (2.5mm thick), Megodoor’s zipper door eliminates metal components in the curtain, enhancing safety for personnel and equipment. It’s the ultimate upgrade from traditional slow-speed industrial doors.
最高运行速度可达 2.5 m/s，配备自动复位门帘系统与2.5mm多层复合PVC门帘，门帘无金属部件，提升人员与设备安全，是传统低速工业门的理想升级方案。
🔧 4 Key Innovations | 四大核心技术优势
1. Efficient Energy Savings | 高效节能

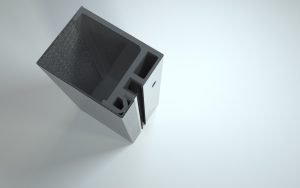

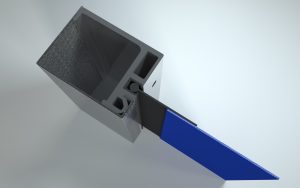

- Zipper Rail + Full Perimeter Sealing minimizes air leakage and thermal transfer
拉链导轨 + 全周密封，显著减少空气泄漏与热量传导 - Multi-layer insulated PVC curtain reduces heat conduction by up to 40%
多层保温PVC门帘，导热系数降低高达40% - Maintains temperature stability in cold rooms and clean areas
保持冷库与洁净区的恒温恒湿
✅ Ideal for energy-sensitive environments | 适用于高能耗敏感区域
2. Extremely High Safety | 极致安全防护
- No exposed metal parts in the curtain – safe for forklifts and personnel
门帘无外露金属件，避免碰撞损伤 - Soft U-shaped bottom edge with infrared sensors and airbag protection prevents entrapment
柔性U型底边 + 红外感应 + 气囊防护，防夹伤 - Double-row sealing brushes on both sides ensure full enclosure
两侧双排密封毛刷，实现全方位密封
✅ Protects people, equipment, and products | 保护人员、设备与产品安全
3. Patented Self-Repairing Technology | 专利自修复技术
- If the curtain is dislodged by a forklift or impact, it automatically re-zips itself during the next cycle
若门帘因叉车或外力脱轨，下一次运行时将自动重新啮合 - No manual intervention or maintenance required
无需人工复位或维修 - Reduces downtime and maintenance costs by up to 70%
维护成本与停机时间降低高达70%
✅ Always operational, even after impact | 轻微碰撞后仍可自动恢复运行
4. Excellent Wind Resistance | 卓越抗风性能
- Withstands wind loads up to Grade 6–8 (up to 600 Pa)
可承受6–8级风压（最高600Pa） - Optional wind-resistant ribs and reinforced frame for extreme conditions
可选抗风加强筋与加固框架，适用于强风环境 - Stable operation in outdoor corridors, loading docks, and coastal facilities
适用于室外通道、装卸平台及沿海厂区
✅ Reliable in harsh weather | 恶劣天气下依然稳定运行
🎨 Customization Options | 定制化选项
| Feature | Options |
|---|---|
| Frame Material | Galvanized Steel / SS 304 Stainless Steel (hygienic grade) |
| 门框材质 | 镀锌钢 / 304不锈钢（食品级） |
| Curtain Thickness | 1.2mm, 1.8mm, 2.5mm (high durability) |
| 门帘厚度 | 1.2mm, 1.8mm, 2.5mm（高耐久） |
| Curtain Color | Red, Blue, Yellow, Gray, White, or RAL color matching |
| 门帘颜色 | 红、蓝、黄、灰、白或RAL色卡定制 |

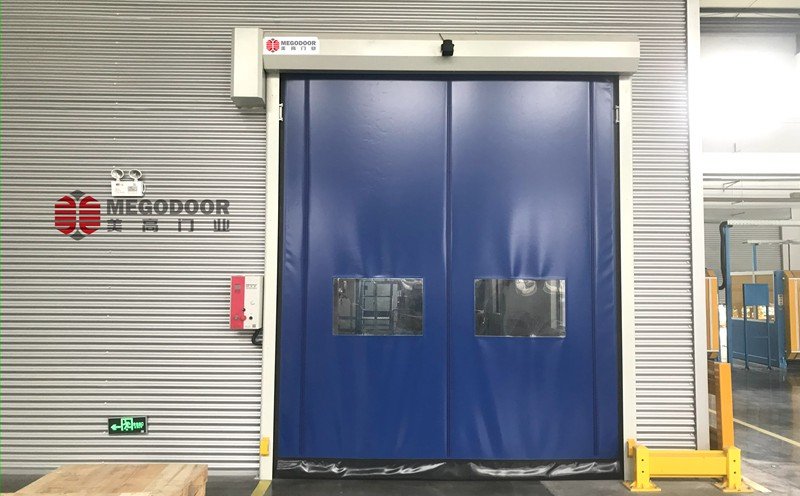

| Transparent Window | Optional clear PVC panel for visibility |
| 透明视窗 | 可选透明PVC板，增强可视性 |
| Opening Speed | Adjustable up to 2.5 m/s |
| 开启速度 | 可调，最高 2.5 m/s |
| Control System | Standard PLC / Servo / Smart APP / Bluetooth |
| 控制系统 | 标准PLC / 伺服 / 智能APP / 蓝牙 |
🎯 Multiple Opening Methods | 多种智能开启方式
| Method | Function |
|---|---|
| Motion Sensor / Radar | Automatically opens when person or vehicle approaches |
| 雷达感应 | 人员或车辆接近时自动开启 |
| Vehicle Loop Detector | Triggers door upon vehicle entry |
| 地感线圈 | 车辆驶入即自动开门 |
| Touchless Switch | Infrared or proximity sensor – ideal for cleanrooms |
| 无接触开关 | 红外或感应式，适用于洁净区 |
| Face Recognition | Contactless access control for high-security zones |
| 人脸识别 | 无接触通行，提升安全与效率 |
| Remote Control / Wireless Button | Manual control without physical contact |
| 遥控 / 无线按钮 | 无需接触，远程操作 |
| Bluetooth APP | Smart unlocking via mobile device |
| 蓝牙APP | 手机一键控制，智能互联 |
✅ Flexible integration for any environment | 灵活适配各类应用场景

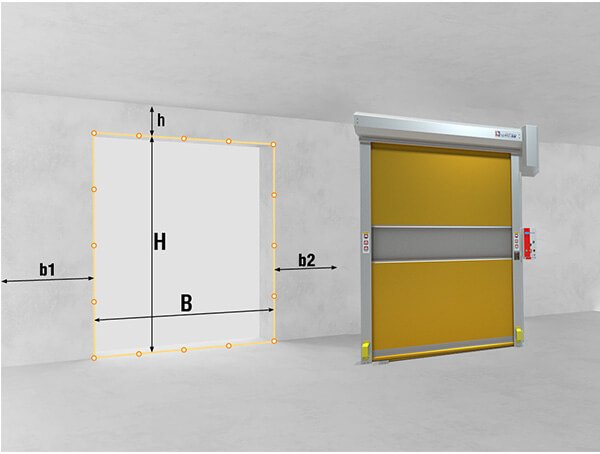

📏 Installation Guide | 安装说明
All measurements are taken indoors. Measure at least 3 points per dimension.
所有测量均在室内进行，每项尺寸至少测量3个点。
| Parameter | Description | Rule |
|---|---|---|
| H | Opening Height (floor to top) | Take the maximum value |
| H | 门洞高度（地面至顶部） | 取最大值 |
| B | Opening Width (left to right) | Take the maximum value |
| B | 门洞宽度（左至右） | 取最大值 |
| h | Headroom (top to ceiling) | Reserve ≥600mm, take minimum value |
| h | 头部空间（顶部至天花板） | 预留≥600mm，取最小值 |
| b1/b2 | Side Clearance | Min. 200mm, take minimum value (Motor side: 500mm) |
| b1/b2 | 侧边空间 | 最小200mm，取最小值（电机侧：500mm） |
📌 Accurate measurement ensures perfect fit and performance.
📌 精确测量是完美安装的前提。
🌍 Project Cases | 项目案例
- 🇹🇭 Thailand – Environmental Station
Installed stainless steel zipper door for corrosion resistance and hygiene
泰国——环保站：安装不锈钢拉链门，满足防腐与卫生要求 - 🇯🇵 Japan – Pharmaceutical Plant

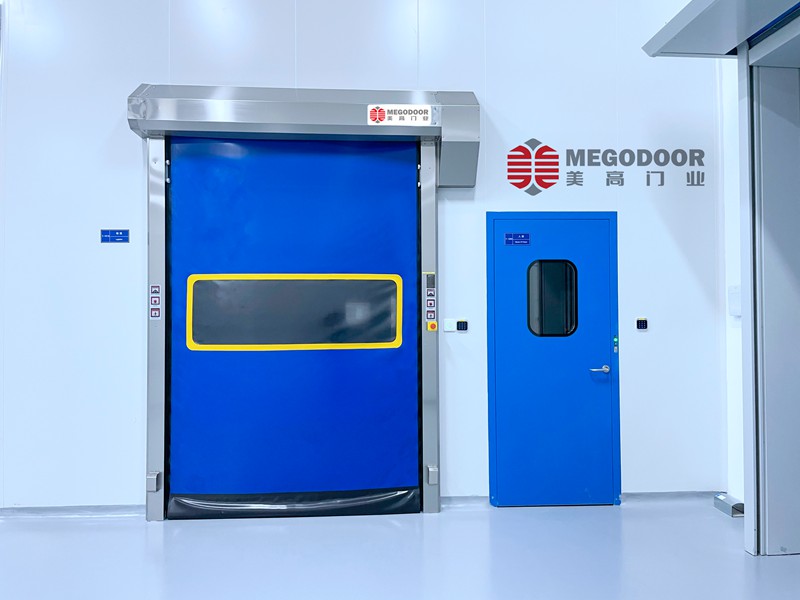

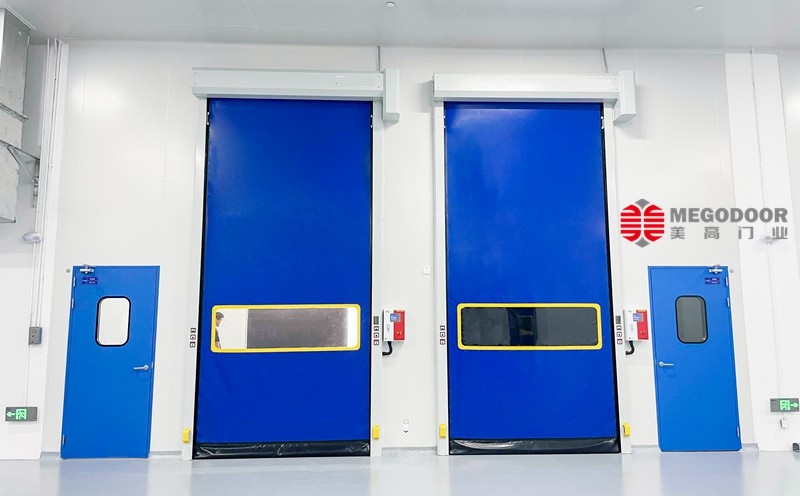

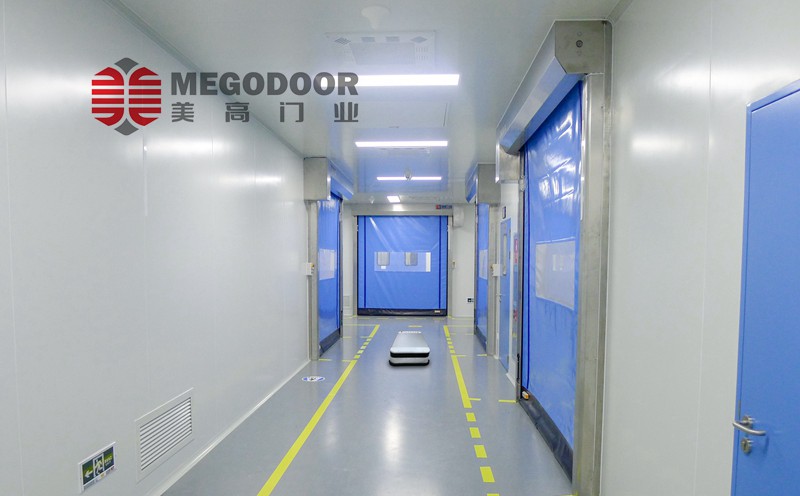

Cleanroom zipper high-speed door with SS 304 frame and touchless control
日本——制药厂：洁净室专用门，配备304不锈钢框架与无接触控制 - 🇺🇸 USA – Workshop Separation
Customized extra-large zipper door (5.5m × 5m) to isolate workshop zones
美国——车间分隔：定制超大尺寸拉链门（5.5m × 5m），实现区域隔离
🏭 Why Choose Megodoor? | 为何选择美高门业？
- ✅ 3,200+ Global Clients in 70+ Countries, including Sony, Volkswagen, Bayer, Thermo Fisher, Wyeth
全球70多国3,200+客户，包括索尼、大众、拜耳、赛默飞、惠氏等 - ✅ 20,000㎡ Automated Factory with $5.38M registered capital
20,000㎡自动化生产基地，注册资金538万美元 - ✅ 18–30 Day Fast Lead Time – Global shipping from Shanghai, Ningbo, Qingdao
18–30天快速交期——从上海、宁波、青岛等港口全球发货 - ✅ 2-Year Motor Warranty,
电机2年质保 - ✅ 24/7 Technical Support via Email, WhatsApp, WeChat
全天候技术支持（邮件、WhatsApp、微信）
📞 Get Your Free Quote Today! | 立即获取免费报价！
Upgrade your facility with a self-repairing, energy-saving, and ultra-fast zipper high-speed door.
为您的设施升级自修复、节能、超高速的拉链式高速门。
Megodoor – Precision. Speed. Reliability.
美高门业——精准、速度、可靠。
Engineered for Industry. Trusted by Global Leaders.
